Narrow Band UVA / UVB Lamps Therapy Machine For Skin Disorders OEM / ODM Service
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Lumsail |
| Certification: | CE, ISO13485, FDA |
| Model Number: | BS-UVR4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | negotiated |
| Packaging Details: | Package: Alloy case |
| Delivery Time: | 1-3 working days |
| Payment Terms: | T/T, Western Union, MoneyGram or other payment ways |
| Supply Ability: | 500 units per month |
|
Detail Information |
|||
| Product Name: | Narrow Band UVA / UVB Lamps Therapy Machine For Skin Disorders | Type: | BS-UVR4 |
|---|---|---|---|
| Sample: | Available | Sample Time: | Within 1 Day After Your Sample Order |
| OEM: | Available | ODM: | Available |
| Light Source: | UVA And/or UVB Lamp | Radiation Dosage: | UVA: 0 - 20 J/cm2; UVB: 0 - 5 Mw/cm2 |
| Radiation Area: | 60 X 55 Cm | Vertical Route Of Distance: | 0 – 40 Cm |
| High Light: | blue and red light therapy devices,led blue and red light therapy |
||
Product Description

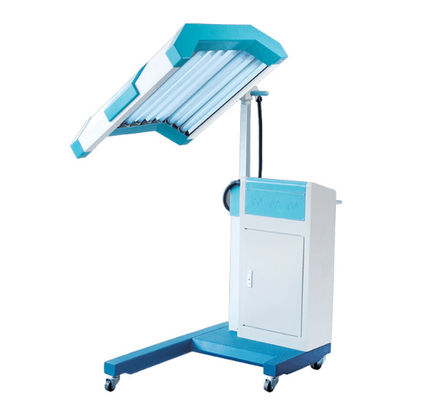

Narrow band UVA / UVB lamps therapy machine for skin disorders
The BS-UVR4 is high energy professional narrow band UVA and UVB light therapy equipment
Phototherapy, or ultraviolet light, is defined as either mid wave light energy (Ultraviolet-B light [UVB]) or long wave light (Ultraviolet-A [UVA]). UVB is available as narrowband or broadband. It has been known for many years that UVA, UVB, and narrowband UVB light - Ultraviolet phototherapy - slows abnormal growth of normal skin cells which is associated with psoriasis.
Features:
Adopts high quality UV lamp source to ensure the light quality and stability.
Long lifecycle by optimized power source for the lamps.
Precisely control the dosage of UV light, so as to obtain the best treatment effect.
Electrical-control lifting arm to suit for different usage case with handheld controller.
Glisten board in radiation machine to increase radiation efficiency
Particular anti-jamming technology to ensure normal work in strong magnetic field
8 lamps, 40W or 20W, UVA and UVB can be used independently or integrated.
The reflector board is installed in the interior, and can improve the radiation efficiency
The patient can stand and lie to be irradiated.
Irradiator automatically goes up and down (Vertical distance is up to 40cm, rotation angle is 0-90°), it can be locked in any angle and rotated in a certain angle.
The dual monitoring function of hardware and software ensure the patient safety
Unique anti-jamming technology ensures that the equipment can be normally working in a strong magnetic field.
Microcomputer controls the radiation dose and time
Technical Parameter:
| Light Source | UVA and/or UVB Lamp |
| Radiation Intensity | Type AB (with both UVA/UVB): UVA: >= 4.0 mw/cm2 by 6 tubes/40W;UVB: >= 0.3 mw/cm2 by 4 tubes/20 Type A (with only UVA):UVA: >= 6.0 mw/cm2 by 10 tubes/40W Type B (with only UVB):UVB: >= 0.6 mw/cm2 by 10 tubes/20W |
| Radiation Dosage | UVA: 0 - 20 J/cm2 ;UVB: 0 - 5 mw/cm2 |
| Timer | 0 – 30 minutes |
| Vertical Route Of Distance | 0 – 40 cm |
| Rotary Angle | 0 – 90 degrees |
| Radiation Area | 60 x 55 cm |
| Rated Power | < 700 Watts |
| Gross Weight | 120Kg |
| Working Environment | 10 – 28℃ 30~80%RH,500~1060hPa |
| Power Specification | AC220V/50Hz, 16A |
| Dimension | 1056mm × 804mm × 1060mm |
