Powerful Q Switched ND YAG Pico Laser Machine For Pigmentation With 1064 Laser Treatment

Powerful Q Switched ND YAG Pico Laser Machine For Pigmentation With 1064 Laser Treatment

  • High Light

    nd yag laser tattoo removal machine

    ,

    nd yag laser for pigmentation

  • Product Name
    Powerful Q-switched Laser Treatment BS-YAG1 For Tattoo Removal
  • Type
    BS-YAG1
  • Sample
    Available
  • Sample Time
    1-2 Days After Your Sample Order
  • OEM
    YES
  • ODM
    YES
  • Logo Service
    Boot Logo Is Free; Silk Printing Logo Has MOQ Requirement
  • Laser Type
    EO Q-switch Nd:YAG Laser
  • Spectra Wavelength
    Double Wavelength 1064nm, 532nm
  • Single Pulse Energy Flence
    Max.800 MJ At 1064nm;Max.400mJ At 532nm
  • Place of Origin
    Shanghai, China
  • Brand Name
    Lumsail
  • Certification
    CE
  • Model Number
    BS-YAG1
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiated
  • Packaging Details
    Aluminum case ; carton
  • Delivery Time
    1-3 working days
  • Payment Terms
    T/T, Western Union, MoneyGram or other negotiated payment ways
  • Supply Ability
    500 units per month

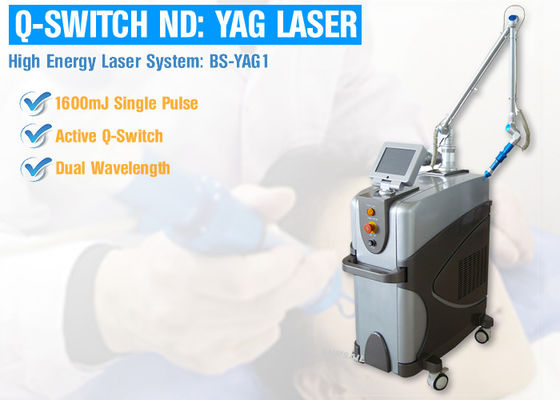

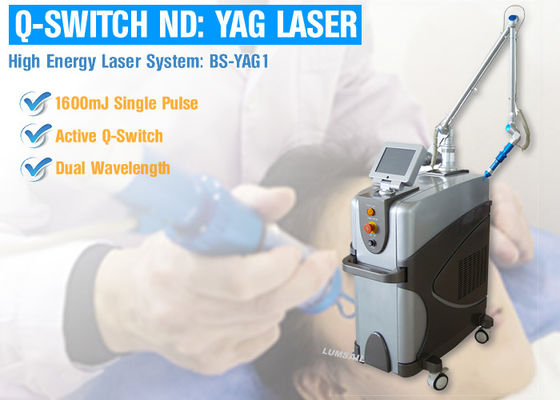

Powerful Q Switched ND YAG Pico Laser Machine For Pigmentation With 1064 Laser Treatment

Powerful Q-switched laser treatment BS-YAG1 For tattoo removal



BS-YAG1 powerful Q-switch Nd:Yag laser equipment is sourced by ND:YAG medical laser. With multiple levels amplifying, the laser beam carries high energy which can be used in many fields as tatto removing, freckle removing, etc. The affluent energy design ensures the energy density and treatment effect, at the same time many improvements are integrated to eliminate as far as possible the damage caused by laser to the people under treatment, and surrounding environment.





Features:

Dual wavelength Nd:Yag laser:1064nm and 532nm

Support high energy Q-switch output mode, with max output at 800m joules,and pulse width down to 6ns

Support long pulsed output mode for skin rejuvenation and wrinkle removal

Electro-Optic Q-Switched YAG Laser source, with very short pulse width

Optical beam transmission:7 joints arm light conducting arm and high transmission efficiency

Automatically adjust the laser fluence according light spot size settings



Advantage:

Remove pigment lesions on dermis

800mJ/1600mJ Single Pulse

1064/532nm wavelength

Electro-Optic Q--Switched

High energy output with adjustable spot size





Technical Parameter:



Powerful Q-switched laser treatment BS-YAG1 For tattoo removal treatment

Type EO Q-switch Nd:YAG laser
Spectra wavelength Double wavelength 1064nm, 532nm
Energy Max.800 mJ at 1064nm;Max.400mJ at 532nm
Laser Pulse width Minimal 6ns(Q-switch mode);300 ns(Long pulsed mode)
Repeat Frequency 1-10Hz
Spot Size Diameter 2-7 adjustable on handpiece; Energy density displays on LCD simultaneously
Aiming Beam Red Diode Laser
Laser Delivery 7 joints articulated light guiding arm,with power density adjustable pole
Cooling system Close loop self-contained Water-air cooling
Aiming Beam Diode laser 650nm(RED)
Weight 140kg
Dimension 700*420*505mm
Working Temperature 15-27°C
Environment Humidity <=80%
Power AC 220V/10A,50/60Hz
