LUMSAIL BS-IPL-YAG6 Hair removal Skin rejuvenation Pigmented Vascular lesions Tattoo Removal IPL and YAG Laser Machine
Product Descirption of LUMSAIL BS-IPL-YAG6 Hair removal Skin rejuvenation Pigmented Vascular lesions Tattoo Removal IPL and YAG Laser Machine
This model of Multifunction IPL and YAG laser system combines IPL, RF and Q-switch ND: YAG laser function. IPL hair removal and skin rejuvenation system is based on IPL (Intense Pulsed Light) super photon technology. The IPL system emits a broad spectrum of intense pulsed light through the professional hand-piece. High quality crystal filters light in useless wavelength range. The light penetrates the tissue and is absorbed by either the blood when treating vascular lesions or the melanin when treating pigmented lesions or for hair removal and then damaging them. The body's natural processes then remove the injured tissue giving the skin a more even and youthful appearance.
The Q-switch laser unit can be working as laser tattoo removal and pigment removal. The pigmentation of body can be effectively broken up into pieces and removed by laser instantaneous high energy. Laser at certain wavelength can penetrate epidermis to lesion tissues within the extremely short time, then break up the corresponding chromospheres immediately. The corresponding pigment expands rapidly and explodes into pieces. Part of the pigment will be bounced out from patient’s body at the moment, while the other part the pigment will split into the tiny granules that can be engulfed by phagocytes of the body. After the digestion of phagocytes, it can be excluded from the lymphatic system. The pigment of the injured tissues gradually becomes shallow until disappears, while no injured trace will be left on the peripheral normal tissues, for they will not absorb the laser of the fixed wavelength.
Features of LUMSAIL BS-IPL-YAG6 Hair removal Skin rejuvenation Pigmented Vascular lesions Tattoo Removal IPL and YAG Laser Machine:

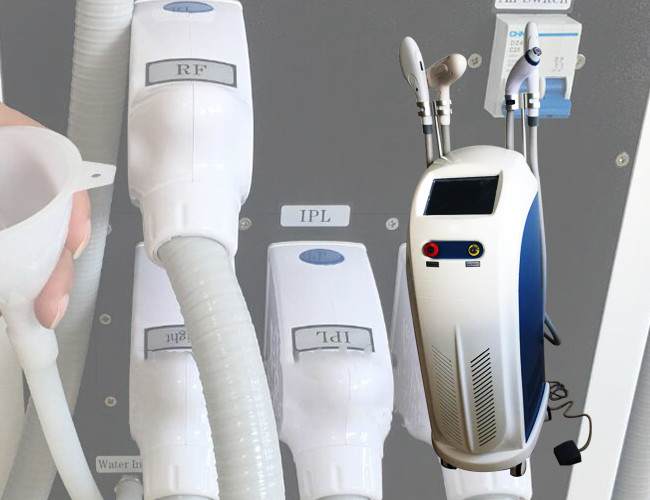

l Multi handpieces for different purpose: IPL hair removing, IPL rejuvenation, Laser tattoo removing.
l Dual control panel for IPL+RF and Q-switch nd:YAG laser.
l Exchangeable laser aimer supports 1064nm and 532nm wavelength output.
l Colorful touch screen control panel.
l High quality sapphire cooling coupling system.
l Enhanced circuit design for anti-jamming, which makes it be able to work stably.
l Optional big spot size output window to improve the treatment efficiency of IPL hair removal.
Technical Specification of LUMSAIL BS-IPL-YAG6 Hair removal Skin rejuvenation Pigmented Vascular lesions Tattoo Removal IPL and YAG Laser Machine:
Intense Pulse Light by Xenon flashlight
Q-switch ND:YAG Laser
IPL Spectra wavelength
530 ~ 1200nm for Skin Rejuvenation
640 ~ 1200nm for Hair Removal
490 ~ 1200nm for Acne Treatment
|IPL Spot Size||8mm x 40mm (with filters)|
|Number of IPL Pulse||1 ~ 6 adjustable|
|IPL Energy Density||0 ~ 50J/cm2, stepping at 1 J/cm2|
|IPL Spot Temperature||0oC ~ -2oC|
|IPL Pulse Duration||1 ~ 100ms adjustable|
|IPL Frequency||1 ~ 3 Hz|
|IPL Pulse Interval Delay||1 ~ 100ms adjustable|
|Laser wavelength||1064nm and 532nm|
1064nm: < 1000mJ (multi-pulses)
532nm: < 500mJ (multi-pulses)
|Laser Pulse Width||< 10nm|
|Laser Frequency||1~ 6 Hz|
|RF Energy||< 150mw/cm3|
|Cooling System||Air & Industrial level Built-in water cycle & Semiconductor cooling system|
|Operation Interface||Colorful touch screen control panel|
|Power Supply||220V/50Hz OR 110V/60Hz|
For LUMSAIL BS-IPL-YAG6 Hair removal Skin rejuvenation Pigmented Vascular lesions Tattoo Removal IPL and YAG Laser Machine Any Request Just Company LUMSAIL MEDICAL Ray
