Segmented Biochemical Body Fat Analyzer With Printer

Segmented Biochemical Body Fat Analyzer With Printer

Product Details:

Place of Origin: Shanghai, China
Brand Name: Lumsail
Certification: CE
Model Number: BS-BCA2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiated
Packaging Details: Standard export packing
Delivery Time: Within 3 working days after we received the payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 unit per month
Get Best Price Contact Now

Detail Information

Analyzer Resource: Multi-frequency Bioelectrical Impedance Analysis (MFBIA) Electrode: 8-Point Tactile Electrode System
Calculation Method: No Empirical Estimation Segmented Item: Right Arm, Left Arm, Body, Right Leg, Left Leg
Control Panel: Colorful Touch Screen Interface: USB2.0, RJ45
Power Specification: AC220V/50Hz Or AC110V/60Hz Weight: 28kg
High Light:

Biochemical Body Fat Analyzer

,

Segmented Body Fat Analyzer

,

BIA Body Fat Analyzer

Product Description

Fat Analyzer Professional Body Composition Analyzer With Printer





Body Composition Analyzer is designed to calculate regional body composition, empowering healthcare
professionals to better determine health risk associated with visceral and abdominal fat. The BS-BCA2 model
is based on the latest statistics method DXA, which analyzes human body composition including fat, weight,
BMI (Body Mass Index), none-fat and other health indicators through multi-frequency bio-electrical impedance
analysis method, also called MFBIA. It calculates by the built-in high performance computer, and gives
out instruction upon the analysis result for testers’ reference as plans to lose weight.



Current has different penetration force depending on frequency. Since low frequency cannot penetrate
cells and flow on the external surface’s water, it measures only water content outside cells, while higher
frequency means that you can measure even the water content inside cells since it penetrates inside cells,
that is, by using diverse frequency, the BS-BCA2 model can accurately measure water contents inside and
outside cells separately. When a body touches an electrode, contact resistance occurs, and it is important
to control the contact resistance in order to correctly measure the resistance in a body.



Applications of Biochemical Analysis System Body Health Composition Scanner Analyzer:

  • Segmented body composition analysis
  • Detect BMI, and other healthy data
  • Emit healthy report and weigth control plan

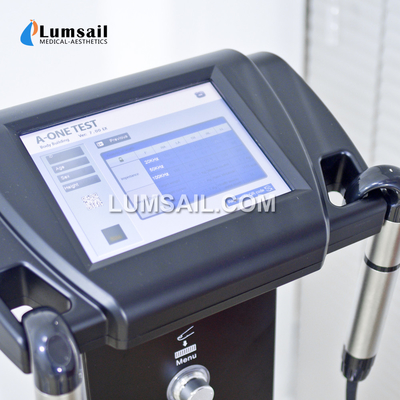

Segmented Biochemical Body Fat Analyzer With Printer 0

Features of Biochemical Analysis System Body Health Composition Scanner Analyzer:

  • 3 frequencies and 8 points, 6 channels testing
  • Huge healthy samples based on scientific research result
  • Export Impedance of Each Segments & Frequencies
  • Big scale colorful touch screen control panel
  • Generate health report and print out through built-in thermal printer or external ink jet printer
  • The analysis process is simple, fast and safe

New Features for Biochemical Analysis System Body Health Composition Scanner Analyzer

  • Segmented analysis on arms/legs
  • Wireless connection to computer

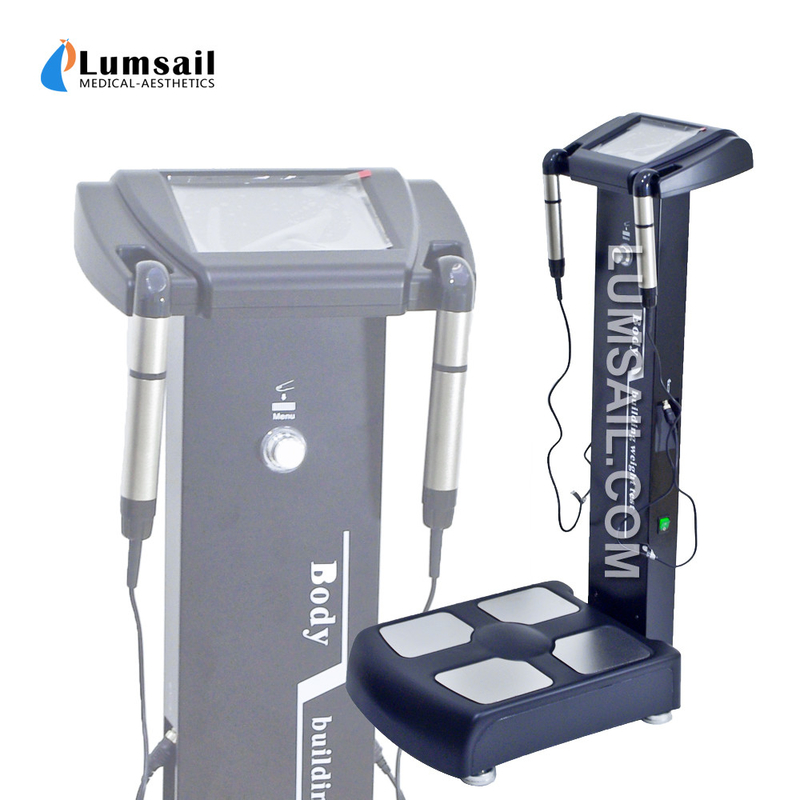

Segmented Biochemical Body Fat Analyzer With Printer 1

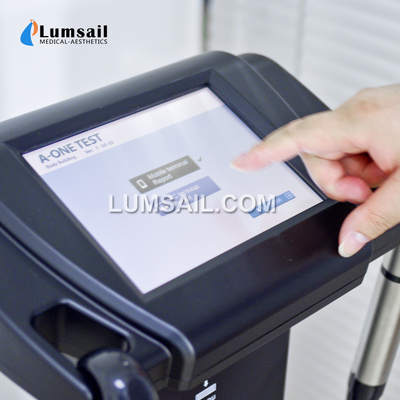

Segmented Biochemical Body Fat Analyzer With Printer 2

Product name
Body element fat analyzer
Product Model
BS-BCA2C
Test Method
Multi-frequency bioelectrical impedance analysis (BIA)
Test Frequency
Three different frequency(20HZ, 50KHZ, 100KHZ)
Electrode Method
8 point contact electrode
Rated current
less than 180μA
Power
Input power: AC100~240V, 50/60HZ
Screen
320*240 STN LCD Touching Screen
Operation Language
English and Multbeautye Language Option for body fat analyzer
body composition analyzer
Values Storage
50000×10 and SD Card unlimited expansion is available
External Storage
SD Card transfer to computer for large storage
External Interfaces
RJ-45, USB2
Printer Interfaces
USB
IC Card System
standard IC card control
Test time
No more than 2 minutes
Operation Environment
Temperature: 10~40°C(50~1040°F),humidity: 30~80%RH, 500~600 hPa
Test scope of weight
10~200Kg; Test scope of age: 10~99 ages; Test scope of height: 90~200cm
Packing size
117*47*34.5cm
Gross weight
55kg

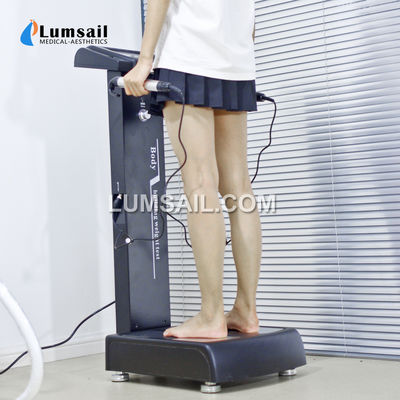

Segmented Biochemical Body Fat Analyzer With Printer 3



For Fat Analyzer Professional Body Composition Analyzer With Printer
