ESWT Physiotherapy Shockwave Therapy Equipment Electromagnetic Medical Pain Relief
|Place of Origin:||Shanghai, China|
|Certification:||CE, FDA REGISTED|
Payment & Shipping Terms:
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Aluminum hand case with shaped foam for ESWT Shockwave Therapy Machine|
|Delivery Time:||Within 3 working days after we received payment of Miniwave ESWT Shockwave Therapy Machine|
|Payment Terms:||T/T, Western Union, MoneyGram, Cash, Alipay|
|Supply Ability:||100 units/month|
|Product Name:||MINIWAVE MAX Cordless Professional Shockwave Therapy Device Medical For Pain Relief||Miniwave Version:||Miniwave Max|
|Miniwave Shockwave Applicator Weight:||0.6Kg||Energy:||Pro Version: 10 – 190mJ, Stepping 10mJ|
|Frequency:||Pro Version: 1 – 21Hz, Stepping 1 Hz||Pulse Mode:||Continuous|
|Output Channel::||Dual-channel Output, Max 2 Applicators Connected||Transmitter For Miniwave Pro:||6 Fully Alloy Made Transmitters 6mm / 15mm B /15mm U / 15mm F / 25mm / 36mm|
|Miniwave Applicator Lifespan:||2 Million Shots Or More||Miniwave Transmitter Lifespan:||300K Shots Or More|
|Control Panel On Main Unit:||Finger-swing Touch Control With OLED Screen||Control Panel On Applicator:||5-buttons Panel With OLED Screen|
|Pre-set Protocols:||Over 90 Preset Protocols On Miniwave APP For MINIWAVE PRO||Packing:||Aluminum Hand Case With Shaped Foam|
|Bluetooth:||Yes, Available On Pro Or Max Version||Application On Mobile Device:||Yes, Available On Pro Version|
ESWT Physiotherapy shockwave therapy equipment,
Medical shockwave therapy equipment,
Pain relief shockwave physical therapy
ESWT Physiotherapy Shockwave Equipment Electromagnetic Medical Pain Relief
Efficient, Easy, Mobile
Shockwave therapy is a multi disciplinary device used in orthopaedics, physiotherapy, sports medicine, urology and veterinary medicine.
A shockwave is a purely mechanical wave, not an electric one. The Shockwave therapy treatment initiates an inflammation-like condition (pro-flamatory) in the tissue that is being treated. The body responds by increasing the blood circulation and metabolism in the impact area which in turn accelerates the body’s own healing processes.
The shockwaves break down injured tissue and calcifications. Shockwave also call as ESWT, Extracorporeal Shockwave Therapy, was first introduced into clinical practice back in 1980 as a treatment for non-invasive lithotripsy. However, in the last two decades, it has been used as a method for musculoskeletal disorders and the stimulation of bone growth. Thus, the shock waves are used for the treatment of various orthopedic conditions including plantar fasciitis, shoulder tendinopathy, elbow tendinopathy, patellar tendinopathy and Achilles tendinopathy. ESWT offers two main advantages over traditional surgical methods: fewer potential complications and a faster return to normal activity.
There are basically 4 different way to produce the 'shock wave', which, without getting technical about it are - spark discharge; piezoelectric; electromagnetic and pneumatic (or electrohydrualic).
- Ports for two handpieces
- Control by finger-touch screen or panel on handpiece or APP on smart phones
- Rich software features in the APP
- Indication menu with treatment protocols and favourite private programs
- Full alloy made transmitters
- Energy from 10 to 190 mJ (comparable to 0.25 - 5 Bar)
- Pulse frequencies from 1 to 21Hz
- Comfortable shockwave pulses
- Ultra-thin silicon cap with little energy loss
- High mobility

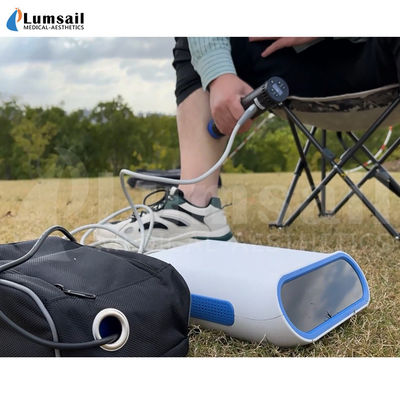

- DC battery cableless mode for outdoor use (MiniWave MAX only)
Bluetooth connection with cellphone facilitates the advanced users to define pre-set treatment protocols, and operate the machine remotely on mobile devices. Value-add functions include client info and treatment history management, operator management and rental system. Users can define their own pre-set protocols via easy-to-use APPs on mobile phones.
Benefits of Miniwave Shockwave Therapy include:
- Fast pain relief
- Mobility restoration
- Accelerated tissue repair and cell growth
Specifications for Miniwave Shockwave Therapy Machine
|MINIWAVE Parameter||Basic Version||Pro Version|
|Energy||10-150mJ, totally 9 levels||10-190mJ, stepping 5mJ|
|Frequency||1-14Hz, totally 9 levels||1-21Hz, stepping 1 Hz|
|Pre-set protocols||5 pre-set protocols, programmable||More than 40 pre-set protocols, customizable|
|APP on mobile device||None||YES, Available for Android & IOS|
|History records management||None||YES|
|Main unit dimension||200 (width) x 230 (length) x 78 (height) mm|
|Main unit weight||1.27Kg|
|Applicator dimension||210 (length) x 50 (diameter) mm|
|Output channel||Dual-channel output, max 2 applicators can connect together|
|Transmitter||6 fully alloy made transmitters 6mm / 15mm B /15mm U / 15mm F / 25mm / 36mm|
|Applicator lifespan||2 million shots or more|
|Transmitter lifespan||300K shots or more|
|Control panel on main unit||Finger-swing touch control with OLED screen|
|Control panel on applicator||5-buttons panel with OLED screen|
|Foot pedal||360 degree foot pedal as optional accessory|
|Firmware upgradable||Yes, via SD card|
|Power||AC mode: Max.250W, AC110V-240V, 50/60Hz
Cordless DC mode: External Lithium-ion battery
*Battery is optional accessory, not included by default
|Fuse||F5 AC250V, 3A|
|Packing||Aluminum hand case with shaped foam, with carton outside|
FAQ for Miniwave Shockwave Therapy
Is there a situation or condition where Shockwave Therapy cannot be used?
Shockwave Therapy is not advised:
- Over or near bone growth centre, or until bone growth is complete
- When a malignant disease is in or near the treatment area
- Infection in the area is to be treated
- Over ischemic tissue in individuals with vascular disease
- For patients who have coagulation disorder or are taking anticoagulant medications
- For patients who have a prosthetic device in the area to be treated
- If the patient has a fetus in the treatment area.
How many sessions of Miniwave Shockwave Therapy do I need?
Effects start to occur after just 1 session. Most patients will notice a significant improvement in their pain symptoms & recovery within 3-4 sessions & a full treatment course is approximately 12 sessions. Your Physiotherapist will likely combine this with other modalities of treatment to give you the best outcome.
What does Miniwave Shockwave Therapy feel like?
People may experience mild discomfort during the treatment. As the area becomes desensitized, the initial discomfort typically fades as it is being treated.
How is the Shockwave treatment performed?
The treatment is noninvasive. First, a gel is applied to the treatment area. Second, an applicator is applied and manipulated to release pressure waves over the affected area. Treatment sessions typically last 5 minutes, but this can vary depending on the area(s) and condition being treated.
What type of results are expected?
Beneficial effects are often experienced after only one or two treatments, and many patients report immediate relief. The technology has a 91% success rate as per clinical studies.
What are the possible side effects?
Treatment with Shockwave technology has virtually no side effects. In some cases, patients may experience minor discomfort for a few days. Patients can return to work after treatments and in most all cases there is no downtime.
Who is a candidate for Shockwave therapy?
Most people are excellent candidates for Shockwave treatment however patients who are pregnant, have a pacemaker or current cancer are not suitable for treatment with Shockwave Technology.
