Veterinary Radial Pulse Wave ESWT Equine Shockwave Machine Therapy Device For Horse
Product Details:
Place of Origin: | Shanghai, China |
Brand Name: | SmartWave |
Certification: | CE |
Model Number: | BS-SWT2X |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiated |
Packaging Details: | Standard export packing |
Delivery Time: | 2-3 days after payment |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 500 unit per month |
Detail Information |
|||
Shockwave Type: | Radial Shockwave Machine ESWT (Extracorporal Shock Wave Therapy) | Energy: | 10 MJ To 190mJ |
---|---|---|---|
Frequency: | 1Hz To 22Hz | Treatment For: | Racehorse , Horse , Dogs , Cats |
Programs: | 10 Professional Preset Protocols For Animals | Benefit: | Equine Shockwave Therapy Safely And Effectively Addresses A Range Of Musculoskeletal Injuries And Conditions |
Orthopedic: | Stimulates New Bone Growth And Fracture Repair, And Cartilage Production In Joints. | Wound Healing: | Improved Blood Supply And Cellular Stimulation Leads To Tissue Regeneration And Rapid Healing. |
High Light: | Horse Equine Shockwave Machine,Radial Equine Shockwave Machine,ESWT shockwave therapy machine |
Product Description
Veterinary Use Radial Pulse Wave ESWT Shockwave Therapy Device for Horse
Equine shockwave therapy safely and effectively addresses a range of musculoskeletal injuries and conditions.
Orthopedic
Stimulates new bone growth and fracture repair, and cartilage production in joints.
Wound healing
Improved blood supply and cellular stimulation leads to tissue regeneration and rapid healing.
Tendons and ligaments
Prompts release of healing and growth factors, with improved collagen production.
Analgesia
Nerve fiber stimulation blocks an increase in pain stimuli and leads to pain reduction (gate control theory).
Extracorporeal shock wave therapy (ESWT) is an emerging new technology for treating musculoskeletal problems, soft-tissue and bone injuries in horses. ESWT is non-invasive and used to stimulate healing so horses return to a level of full soundness and useful activity without recurrence of disease. It actually heals tissues, not just suppresses pain and inflammation.
A shockwave is a pressure wave – any action that displaces its surrounding medium is a shockwave. The ripple created when a stone is thrown into a pond is a shockwave. It has nothing to do with “shocking” or electricity. The shockwaves used in equine medicine are generated in a fluid medium inside a transducer head and are then transmitted readily through skin, fat, and muscle. The high energy waves are focused within the transducer head so that the shockwave can be directed to the precise area of the injury. When shockwaves hit an area of higher acoustic impedance, such as bone, the waves slow dramatically and a large amount of energy is released into the surrounding tissue.
From outside the body (extracorporeal), the machine generates high-intensity shock or pressure waves, which pulse to a specific site within the injured tissue. Though its actual mode of action is still in dispute, it stimulates and accelerates the healing process, essentially combining an immediate analgesic effect with a reduction in inflammation, creating new blood vessels in soft tissue and regeneration in bone.
Initially used to treat musculo-skeletal problems and kidney stones in humans, this same shockwave technology has been found to be highly effective in treating many lameness and musculo-skeletal problems in horses. Using hydraulic pressure, soundwaves are generated by the machine that penetrate the horse’s tissue, where they result in the release of beneficial bio-chemicals and stimulate the growth of a new blood supply to injured areas, as well as providing pain relief.
Shockwaves are high-energy sound waves, which are transmitted to the affected body part. There, they trigger the body’s natural repair mechanisms by stimulating immune-competent cells. Thus, a lasting healing response is achieved without any side-effects.
Shockwave therapy is similar to ultrasound because shockwave equipment sends a wave-like pulse into the tissue from a position outside the body. The energy of the acoustic (sound) wave produced by shockwave equipment is approximately 100 times higher than the energy of the acoustic (sound) wave produced by diagnostic ultrasound units used in equine veterinary medicine. While the acoustic (sound) wave produced by diagnostic ultrasound equipment does not distort body tissue as it enters, travels through, and then rebounds back out of the body tissues to be picked up by the ultrasound probe; the higher energy acoustic (sound) wave produced by equine shockwave equipment does distort the denser body tissues upon initial contact and again at rebound. The “shockwave” wave or pulse compresses denser body tissues such as ligaments, tendons, and bone on its initial journey into the body and then as the “shockwave” wave or pulse recedes these denser body tissues rebound and expand at the cellular level. So, while ultrasound waves rebound without tissue distortion and provide the viewer with a computer generated visual image of body tissues, “shockwave” waves do distort the denser body tissues and thereby essentially “massage” the denser body tissues at the cellular level. This micro-manipulation of the denser body tissues such as ligaments, tendons and bone by the shockwave acoustic (sound) wave stimulates neovascularization (growth of new blood vessels in tissue) and the production of fibroblasts and osteons (cells that heal tendon, ligament and bone). The cellular “deep tissue massage” produced by shockwave therapy also provides some degree of analgesia (pain control), improves healing rates in skin wounds, and produces improvement in infected injury sites.
Shockwave therapy has been shown to:
- Recruit stem cells locally so that the healing is most like the original tissue (less scarring)
- Stimulate new bone growth
- Increase cell permeability and stimulate the release of a cascade of healing and growth factors that contribute to the natural healing process
- Stimulate stem cells in the animal’s body to be directed to the treated area
- Cause neovascularization (an ingrowth of new blood vessels)
- Stimulate fibroblasts, the cells that generate new connective tissue
WHAT CAN SHOCKWAVE TREAT IN HORSES?
Shockwave therapy has been successfully used to treat many soft tissue and bony problems, both acute and chronic. These include, but are not limited to:
Suspensory ligament tears, strains, and avulsion fractures
- Arthritis, joint pain
- Bowed tendons
- Splints
- Bucked Shins
- Deep digital flexor tendon injuries, including those within the hoof
- Navicular syndrome
- Ringbone (High and Low)
- Back pain, Neck pain
- Muscle tears and strains
- Ligament and tendon tears and strains
- Improve large or chronic wound healing
- Burns
DOES SHOCKWAVE WORK ON EVERY CASE?
No, there is no treatment that is successful in every case. Shockwave therapy is one of the most exciting therapies to become available to veterinary medicine in quite some time. It is extremely important to have an accurate diagnosis and a clearly defined area of injury in order to direct the shockwave to the appropriate area.
Suspensory ligament branch
|
||||||
Number of sessions
|
Interval
( Days )
|
Energy
( Bar )
|
Pulses / Session
|
Frequency
( Hz )
|
Transmitter
|
|
2-6 | 10-20 | 2.5-4.0 | 2500-3000 | 10 | 15R |
Collateral ligaments of various joints
|
||||||
Number of sessions
|
Interval
( Days )
|
Energy
( Bar )
|
Pulses / Session
|
Frequency
( Hz )
|
Transmitter
|
|
3-5 | 7 | 2.2-3.5 | 2500-3000 | 15 | 15R |
Arthropathy
Osteoarthritis of the distal interphalangeal joint ( DIP )
|
||||||
Number of sessions
|
Interval
( Days )
|
Energy
( Bar )
|
Pulses / Session
|
Frequency
( Hz )
|
Transmitter
|
|
3-5 | 5-10 | 2.2-3.5 | 2000-4000 | 12 | 15R |
Muscle trigger points-Sciatica , myositis , fibrosis
|
||||||
Number of sessions
|
Interval
( Days )
|
Energy
( Bar )
|
Pulses / Session
|
Frequency
( Hz )
|
Transmitter
|
|
5-10 | 5-7 | 2.5-4.0 | 1000 | 15 | 25R |
Nuchal ligament
|
||||||
Number of sessions
|
Interval
( Days )
|
Energy
( Bar )
|
Pulses / Session
|
Frequency
( Hz )
|
Transmitter
|
|
3-5 | 14 | 1.6-2.0 | 1500-2000 | 15 | 25R |

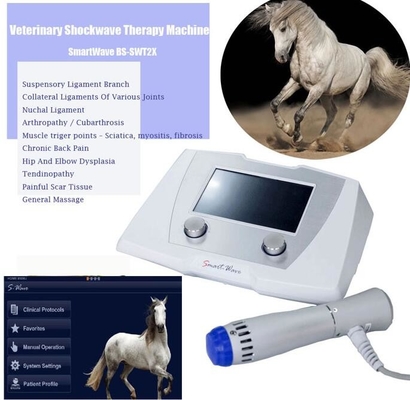

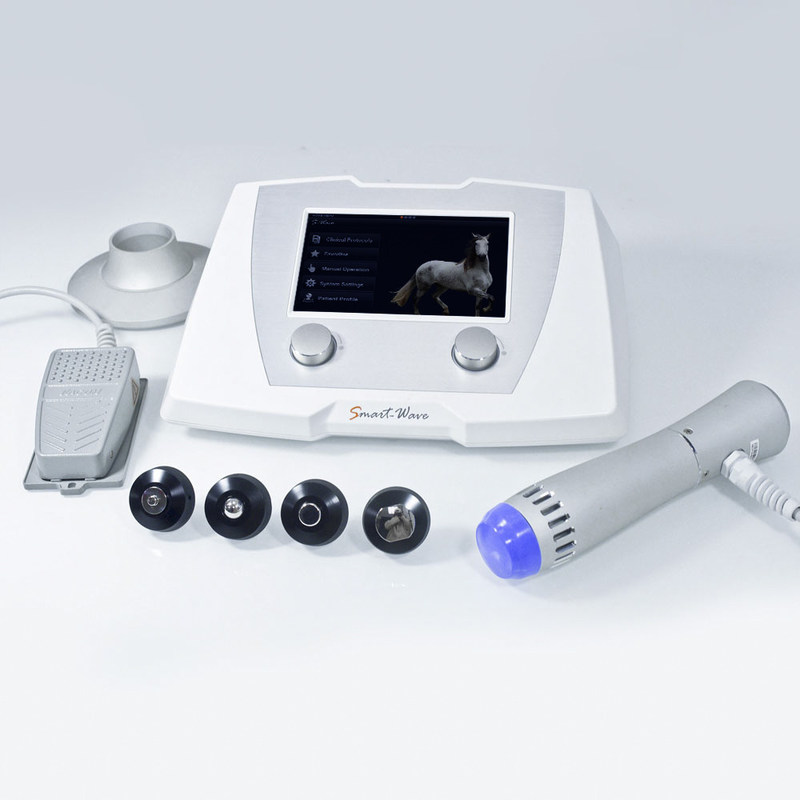

Model | Smart-wave BS-SWT2X |
Therapeutic penetration | 45mm |
Effects | Skin/Muscle |
Energy | 10mJ - 190mJ ( 0.5 Bar to 5 Bar) |
Frequency | 1-22Hz , stepping at 1Hz |
Acoustic wave applicator | Supports 2+ million shots |
Transmitter | 5 pcs alloy made heads for different applications |
Encyclopedia | Live help with pre-set paremeters |
Treatment Protocols | 38 preset protocols , support ED protocol |
Function | Erectile dysfunction , Peyronie's disease , Pain relief |
Type | LI ESWT shock wave |
Multi-language | Yes |
